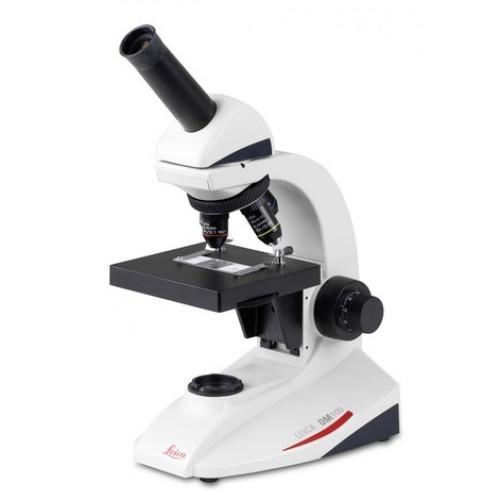

Leica DM100 LED Monocular Microscope

Leica DM100 LED Monocular Microscope

  • SKU: 13613308
$470.00 $549.00
  • Monocular Head
  • Achromat 4x, 10x, 40x Objectives
  • Fixed Stage
  • LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Request Quote

The Leica DM100 LED is a high end entry level microscope. It is designed to be robust and its student friendly features make if perfect for biology applications for all ages.The fully rotatable head, locked in eyepiece, all brass internal mechanisms, and easy to use color coded disc diaphragm make these Leica DM100 LED monocular microscopes best in class. The microscope features achromat 4x, 10x, and 40x objectives and a fixed stage with stage clips. It has coaxial coarse and fine focus controls. The LED illumination provides bright even illumination.



Leica Monocular Microscope Specifications
Head: Monocular Leica EZTube with 45 degree viewing angle, 10×/18 eyepiece with pointer integrated into eyetube
Objectives: Achromat 4x, 10x, 40x
Stage: Fixed, Size: 13.0 cm (X) × 12.4 cm (Y)
Condenser: N.A. 0.65 – Disc diaphragm with magnification indicators
Focus:

Coaxial focus controls, Self‑adjusting focus mechanism, 300 microns per fine focus rotation, Calibrated in 3 micron increments

Maintenance-free, sealed brass shaft focus mechanism, the same design used in Leica’s clinical microscopes
Illumination: LED illumination – 6000 K temp, 25,000 h life at full intensity

The Leica DM100 LED is a high end entry level microscope. It is designed to be robust and its student friendly features make if perfect for biology applications for all ages.The fully rotatable head, locked in eyepiece, all brass internal mechanisms, and easy to use color coded disc diaphragm make these Leica DM100 LED monocular microscopes best in class. The microscope features achromat 4x, 10x, and 40x objectives and a fixed stage with stage clips. It has coaxial coarse and fine focus controls. The LED illumination provides bright even illumination.



Leica Monocular Microscope Specifications
Head: Monocular Leica EZTube with 45 degree viewing angle, 10×/18 eyepiece with pointer integrated into eyetube
Objectives: Achromat 4x, 10x, 40x
Stage: Fixed, Size: 13.0 cm (X) × 12.4 cm (Y)
Condenser: N.A. 0.65 – Disc diaphragm with magnification indicators
Focus:

Coaxial focus controls, Self‑adjusting focus mechanism, 300 microns per fine focus rotation, Calibrated in 3 micron increments

Maintenance-free, sealed brass shaft focus mechanism, the same design used in Leica’s clinical microscopes
Illumination: LED illumination – 6000 K temp, 25,000 h life at full intensity
Maintenance free Bright Illumination

Maintenance free

Maintenance free, sealed, brass shaft, focus mechanism; the same design that is used in our clinical microscopes provides accurate focusing control over the life of the microscope.

Bright Illumination

Leica EZLite™ LED illumination saves the cost of replacement lamps and provides a cool white light for over 20 years of average use at 80% lower energy consumption.

Easy to Use Disc Diaphragm Fixed Stage

Easy to Use Disc Diaphragm

The disc diaphragm is color coded to match the color ring on the objective which insures the student will set the diaphragm properly and get the best quality from the optics.

Fixed Stage

The fixed stage with spring loaded stage clips (included), is perfect for accurate manual manipulation of the specimen slide under the objective.

Leica DM100 Brochure
